一 工作原理
1、振動電機是各類振動機械的振源，廣泛應用于冶金、煤炭、鑄造、電力、礦山、化工等行業，振動平穩，調節方便，可作為振動給料機、振動篩、振動落砂機、振動干燥機、料倉防閉塞等設備的振源。
2、主體結構
振動電機由特制電機加偏心塊組成。
振動電機通電旋轉轉，帶動電機軸兩端的偏心塊旋轉，產生離心力（激振力），通過電機底腳傳遞給振動機械。
3、工作參數
振次（轉速）：HB系列振動電機分別為2、4、6、8級，振次分別為2900、1460、980、740RPM。

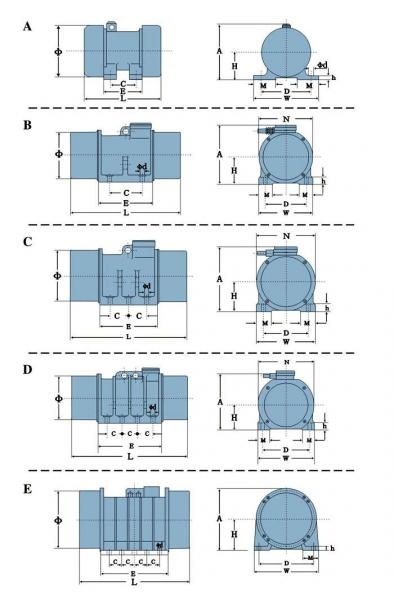

二 安裝示意圖
三 HB系列振動電機安裝尺寸表
|
型號 |
振次 |
最大
激振力 |
額定
功率 |
額定
電流 |
圖號 |
安裝尺寸 |
外形尺寸 |
緊固 |
重量
kg |
|
rpm |
KN |
Kw |
A |
C |
D |
L |
H |
A |
Φ |
E |
W |
h |
M |
φd |
螺栓 |
|
HB 0.7-2 |
2900 |
0.7 |
0.15 |
0.4 |
A |
100 |
140 |
240 |
80 |
190 |
140 |
147 |
180 |
20 |
45 |
13 |
M12 |
11 |
|
HB 1.5-2 |
1.5 |
0.15 |
0.4 |
12 |
|
HB 2.5-2 |
2.5 |
0.25 |
0.4 |
13 |
|
HBM0.7-2 |
0.7 |
0.15 |
0.4 |
90 |
130 |
11 |
|
HBM1.5-2 |
1.5 |
0.15 |
0.4 |
12 |
|
HB 5-2 |
5.0 |
0.40 |
1.0 |
120 |
150 |
330 |
105 |
211 |
170 |
160 |
200 |
21 |
58 |
18 |
M16 |
23 |
|
HB 8-2 |
8.0 |
0.75 |
1.6 |
B |
140 |
170 |
430 |
110 |
240 |
213 |
220 |
220 |
22 |
48 |
22 |
M20 |
41 |
|
HB 16-2 |
16 |
1.50 |
3.4 |
140 |
200 |
440 |
140 |
280 |
260 |
220 |
260 |
22 |
65 |
22 |
M20 |
60 |
|
HB 20-2 |
20 |
1.80 |
4.0 |
62 |
|
HB 30-2 |
30 |
2.00 |
4.0 |
C |
83 |
230 |
520 |
160 |
320 |
303 |
280 |
280 |
25 |
75 |
92 |
|
HBM30-2 |
30 |
2.00 |
4.0 |
105 |
248 |
570 |
160 |
330 |
303 |
290 |
318 |
25 |
85 |
22 |
M20 |
131 |
|
HB 45-2 |
45 |
3.00 |
6.8 |
118 |
280 |
620 |
205 |
410 |
389 |
340 |
340 |
25 |
85 |
26 |
M24 |
185 |
|
HBM1.2-4 |
1460 |
1.20 |
0.07 |
0.25 |
A |
90 |
130 |
290 |
80 |
190 |
140 |
147 |
180 |
16 |
45 |
13 |
M12 |
14 |
|
HB 1.2-4 |
1.2 |
0.07 |
0.25 |
100 |
140 |
14 |
|
HB 2.5-4 |
3 |
0.10 |
0.3 |
18 |
|
HB 5-4 |
5 |
0.20 |
0.5 |
120 |
150 |
330 |
105 |
211 |
170 |
160 |
200 |
21 |
58 |
18 |
M16 |
27 |
|
HB 8-4 |
8 |
0.40 |
1.1 |
B |
140 |
170 |
430 |
110 |
240 |
213 |
220 |
220 |
22 |
48 |
22 |
M20 |
45 |
|
HB 10-4 |
10 |
0.50 |
1.1 |
48 |
|
HB 16-4 |
16 |
0.75 |
1.8 |
140 |
200 |
405 |
140 |
280 |
260 |
220 |
260 |
22 |
65 |
65 |
|
HB 20-4 |
20 |
1.10 |
2.6 |
67 |
|
HB 25-4 |
25 |
1.50 |
3.0 |
C |
83 |
230 |
520 |
160 |
320 |
303 |
280 |
280 |
25 |
75 |
102 |
|
HB 32-4 |
32 |
2.00 |
4.5 |
107 |
|
HBM32-4 |
32 |
2.00 |
4.5 |
105 |
248 |
570 |
160 |
330 |
303 |
290 |
318 |
25 |
85 |
22 |
M20 |
152 |
|
HB 40-4 |
40 |
2.20 |
5.0 |
138 |
|
HB 50-4 |
50 |
2.50 |
6.4 |
118 |
280 |
620 |
205 |
410 |
389 |
340 |
340 |
25 |
85 |
26 |
M24 |
240 |
|
HB 75-4 |
75 |
4.00 |
10.0 |
120 |
320 |
650 |
200 |
410 |
389 |
370 |
400 |
32 |
102 |
32 |
M30 |
271 |
|
HB 100-4 |
100 |
6.00 |
14.0 |
140 |
380 |
750 |
220 |
430 |
403 |
395 |
510 |
32 |
110 |
321 |
|
HB 120-4 |
120 |
8.00 |
18.5 |
140 |
440 |
720 |
235 |
470 |
445 |
404 |
540 |
37 |
100 |
38 |
M36 |
400 |
|
HB 140-4 |
140 |
10.0 |
23.0 |
D |
120 |
462 |
940 |
260 |
540 |
445 |
510 |
550 |
38 |
120 |
38 |
M36 |
510 |
|
HB 160-4 |
160 |
10.0 |
24.3 |
521 |
|
HBM140-4 |
140 |
10.0 |
23.0 |
118 |
460 |
520 |
|
HBM160-4 |
160 |
10.0 |
24.3 |
540 |
|
HB 2.5-6 |
980 |
2.5 |
0.20 |
0.6 |
A |
120 |
150 |
330 |
105 |
211 |
170 |
160 |
200 |
21 |
58 |
18 |
M16 |
27 |
|
HB 5-6B |
5 |
0.40 |
1.2 |
B |
375 |
110 |
230 |
213 |
170 |
200 |
23 |
60 |
38 |
|
HB 5-6 |
5 |
0.40 |
1.2 |
140 |
170 |
430 |
110 |
240 |
213 |
220 |
220 |
22 |
48 |
22 |
M20 |
45 |
|
HB 8-6 |
8 |
0.55 |
1.5 |
460 |
53 |
|
HB 10-6 |
10 |
0.75 |
2.1 |
140 |
200 |
440 |
140 |
280 |
260 |
220 |
260 |
22 |
65 |
69 |
|
HB 16-6 |
16 |
1.10 |
2.9 |
500 |
85 |
|
HB 20-6 |
20 |
1.50 |
3.5 |
C |
83 |
230 |
520 |
160 |
320 |
303 |
280 |
280 |
25 |
75 |
107 |
|
HBM26-6 |
26 |
2.20 |
5.6 |
105 |
248 |
620 |
160 |
330 |
303 |
290 |
318 |
25 |
85 |
22 |
M20 |
168 |
|
HB 30-6 |
30 |
2.20 |
5.6 |
170 |
|
HB 40-6 |
40 |
3.00 |
6.8 |
645 |
189 |
|
HB 50-6 |
50 |
3.70 |
8.1 |
118 |
280 |
620 |
205 |
410 |
389 |
340 |
340 |
25 |
85 |
26 |
M24 |
226 |
|
HB 75-6 |
980 |
75 |
5.50 |
11.9 |
C |
120 |
320 |
700 |
200 |
410 |
380 |
370 |
400 |
32 |
102 |
32 |
M30 |
285 |
|
HB 100-6 |
100 |
7.50 |
17.5 |
140 |
380 |
800 |
220 |
430 |
403 |
395 |
510 |
32 |
110 |
385 |
|
HB 120-6 |
120 |
8.50 |
17.7 |
140 |
440 |
770 |
235 |
470 |
445 |
404 |
540 |
37 |
100 |
38 |
M36 |
434 |
|
HB 140-6 |
140 |
9.50 |
19.6 |
D |
120 |
462 |
980 |
260 |
540 |
445 |
510 |
550 |
38 |
120 |
38 |
M36 |
530 |
|
HB 160-6 |
160 |
12.0 |
24.0 |
650 |
|
HBM140-6 |
140 |
9.50 |
19.6 |
118 |
460 |
530 |
|
HBM160-6 |
160 |
12.0 |
24.0 |
650 |
|
HB 180-6 |
180 |
14.0 |
28.3 |
120 |
520 |
900 |
270 |
560 |
490 |
530 |
610 |
40 |
125 |
45 |
M42 |
840 |
|
HB 200-6 |
200 |
17.0 |
34.0 |
950 |
850 |
|
HB 220-6 |
220 |
19.0 |
38.0 |
1150 |
857 |
|
HB 240-6 |
240 |
19.0 |
38.0 |
901 |
|
HBM260-6 |
260 |
20.0 |
45.7 |
D |
146 |
570 |
1130 |
310 |
630 |
585 |
650 |
680 |
56 |
150 |
50 |
M48 |
1290 |
|
HBM280-6 |
280 |
21.0 |
46.7 |
1155 |
1340 |
|
HBM300-6 |
300 |
23.0 |
52.5 |
1185 |
1352 |
|
HBM320-6 |
320 |
24.0 |
56.8 |
1220 |
1430 |
|
HBM340-6 |
340 |
25.0 |
59.1 |
1250 |
1490 |
|
HBM360-6 |
360 |
26.0 |
61.9 |
1280 |
1550 |
|
HB 250-6 |
250 |
21.0 |
40.0 |
E |
130 |
630 |
1180 |
365 |
740 |
600 |
700 |
730 |
50 |
175 |
45 |
M42 |
1450 |
|
HB 300-6 |
300 |
25.0 |
42.0 |
1600 |
|
HBM400-6 |
400 |
28.0 |
65.7 |
1300 |
1890 |
|
HBM430-6 |
430 |
29.0 |
68.6 |
1320 |
1950 |
|
HBM460-6 |
460 |
30.0 |
72.1 |
1350 |
2030 |
|
HB 5-8 |
740 |
5 |
0.40 |
1.6 |
B |
140 |
200 |
440 |
140 |
280 |
260 |
220 |
260 |
22 |
65 |
22 |
M20 |
69 |
|
HB 10-8 |
10 |
0.75 |
2.9 |
C |
83 |
230 |
520 |
160 |
320 |
303 |
280 |
280 |
25 |
75 |
107 |
|
HB 16-8 |
16 |
1.50 |
4.1 |
105 |
248 |
620 |
160 |
330 |
303 |
290 |
318 |
25 |
85 |
22 |
M20 |
165 |
|
HB 20-8 |
20 |
2.20 |
6.0 |
189 |
|
HB 30-8 |
30 |
3.00 |
8.1 |
118 |
280 |
620 |
205 |
410 |
389 |
340 |
340 |
25 |
85 |
26 |
M24 |
226 |
|
HB 50-8 |
50 |
4.20 |
10.5 |
120 |
318 |
700 |
200 |
410 |
380 |
370 |
400 |
32 |
102 |
32 |
M30 |
285 |
|
HB 75-8 |
75 |
6.50 |
16.0 |
138 |
380 |
800 |
220 |
430 |
403 |
395 |
510 |
32 |
110 |
38 |
M36 |
382 |
|
HB 100-8 |
100 |
8.50 |
21.8 |
D |
120 |
462 |
940 |
260 |
540 |
445 |
510 |
550 |
38 |
120 |
650 |
|
HB 120-8 |
120 |
10.0 |
22.0 |
680 |
|
HB 140-8 |
140 |
10.0 |
26.0 |
120 |
520 |
950 |
270 |
560 |
490 |
530 |
610 |
40 |
125 |
45 |
M42 |
900 |
|
HB 200-8 |
200 |
14.0 |
39.0 |
1150 |
930 |
|
HB220-8 |
220 |
17.0 |
48.3 |
1290 |
1230 |
|
HB240-8 |
240 |
18.0 |
50.6 |
D |
146 |
570 |
1270 |
310 |
630 |
585 |
650 |
680 |
56 |
150 |
50 |
M48 |
1430 |
|
HB260-8 |
260 |
19.0 |
52.1 |
1310 |
1310 |
|
HB280-8 |
280 |
20.0 |
53.8 |
1350 |
1350 |
|
HB300-8 |
300 |
21.0 |
55.1 |
1390 |
1390 |
|
HB320-8 |
320 |
22.0 |
56.3 |
1430 |
1430 |
|
HB 250-8 |
250 |
18.0 |
38 |
E |
130 |
630 |
1300 |
365 |
740 |
600 |
700 |
730 |
50 |
175 |
45 |
M42 |
1950 |
|
HB 300-8 |
300 |
19.0 |
40 |
2100 |
|
HB340-8 |
340 |
23.0 |
60.5 |
1420 |
2130 |
|
HB360-8 |
360 |
25.0 |
66.9 |
1450 |
2180 |
|
HB380-8 |
380 |
28.0 |
77.0 |
1490 |
2260 |
|
HB400-8 |
400 |
29.0 |
81.2 |
1530 |
2310 |
